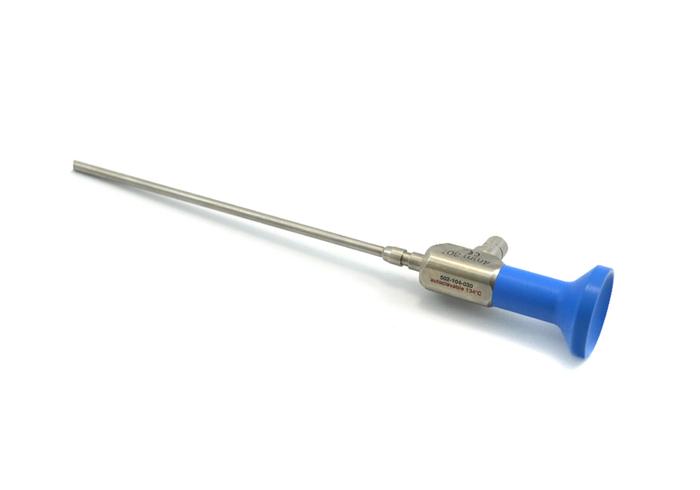

Stryker 4.0 mm 30º IDEAL EYES™ HD Autoclavable Arthroscope, Eyepiece, Speed-Lock™, 140 mm

Type of Scope

Arthroscope

Part Number

502-104-030

Manufacturer

Stryker

Diameter

4.0 mm

Angle

30º

Working Length

140 mm

Sterilization

Autoclavable

STERRAD

Steris

ETO

Cidex

Camera Connection

Eyepiece

Locking Mechanism

Speed-Lock

Light Post Direction

Standard

Procedure

Large Joint Arthroscopy - Knee, Shoulder

Field of View

105º

5.0 mm Series Speed-Lock Hardware

377-031-144 5.0 mm Cannula, 2 Rotating Stopcocks

377-031-129 Pencil Tip Obturator for 5.0 mm Cannula

377-031-229 Trocar for 5.0 mm Cannula

5.8 mm Series Speed-Lock Hardware

747-031-560 5.8 mm Cannula, 2 Fixed Stopcocks

747-031-550 5.8 mm Cannula, 2 rotating Stopcocks

747-031-540 5.8 mm Cannula, 1 Fixed Stopcock

747-031-530 5.8 mm Cannula, 1 Rotating Stopcock

747-031-510 Pencil Tip Obturator for 5.8 mm Cannula

747-031-511 Blunt Tip Obturator for 5.8 mm Cannula

747-031-520 Trocar for 5.8 mm Cannula

Compatible Hardware

6.5 mm Series Speed-Lock Hardware

377-031-650 6.5 mm Cannula, 2 Rotating Stopcocks

377-031-630 6.5 mm Cannula, 1 Rotating Stopcock

377-031-660 6.5 mm Cannula, 2 Fixed Stopcocks

377-031-640 6.5 mm Cannula, 1 Fixed Stopcock

377-031-610 Pencil Tip Obturator for 6.5 mm Cannula

377-031-611 Blunt Tip Obturator for 6.5 mm Cannula

377-031-620 Trocar for 6.5 mm Cannula

6.5 mm Inflow/Outflow Cannula

747-031-650 Inflow/Outflow Cannula, 2 Rotating Stopcocks (Continuous Flow)

747-031-510 Pencil Tip Obturator for 6.5 mm Inflow/Outflow Cannula

747-031-511 Blunt Tip Obturator for 6.5 mm Inflow/Outflow Cannula

747-031-520 Trocar for Inflow/Outflow Cannula
