LG-55-EM
LG-55EMF Operating table is designed for all kind of surgical operations and treatments. Its Intelligent electronics significantly facilitate electrical and manual override.

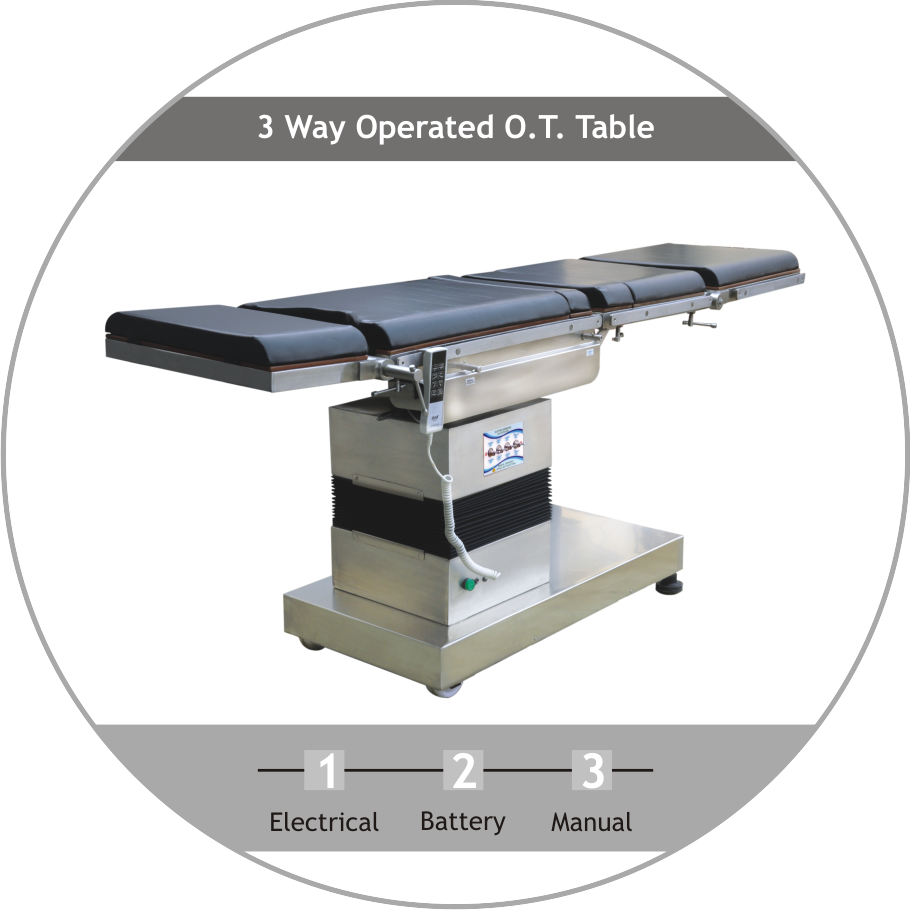

Electro-mechanical with manual override
Base cover made of rugged glass fiber
"0"position one-button activated
Wheel locking via Remote Control
SALIENT FEATURES

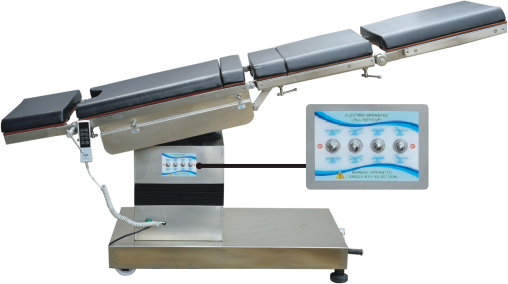

Unique Mechanism
With the help of Selector Switches we can change Operating Mode from Electric to Manual for one, more than one or all positions and vice-versa. This unique feature makes the O.T. table to work in every circumstances either electrical failure or non functioning of remote.
Technical Parameters
- Length of Table Top2150 mm
- Width of Table Top500 mm
- Minimum Height750 mm
- Maximum Height1050 mm
- Head & Leg Section90°/-90°
- Kidney Elevator12 cm
- Lateral Tilt+20°/-20°
- Trendelenburg+25°/-25°
- Back Section90°/-40°
- Permissible Load200 Kg
